The universal voltage source for industry and laboratory

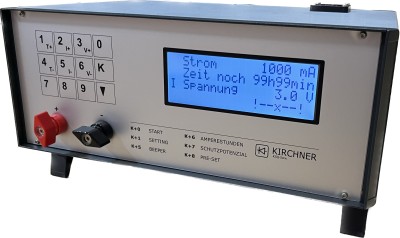

The Kirchner KSQ 3025 universal voltage source is the power supply with a maximum output of 25 amps and a voltage range of 0-30Volt. The current is controlled accurately to +/- 5mA by means of a linear power controller. The voltage curve can be set separately from the current control.

The Kirchner KSQ 3025 Universal Voltage Source is a high performance power supply designed for a wide variety of applications. With its robust capacity to deliver a maximum output of 25 amps and a flexible voltage range from 0 to 30 volts, it meets a wide range of electrical requirements. This versatility makes it suitable for both laboratory experimental setups and industrial applications where precise power control is essential.

Power up to 25A at 0-30V - control range 0.005A

One of the key features of the Kirchner KSQ 3025 Universal Power Supply is its precision in voltage and current control. The unit is equipped with a linear power controller, which enables it to maintain current accuracy within a tight range of +/- 5mA. This level of precision is particularly valuable in scenarios where even small variations in current can result in significant changes in experimental or operational results.

In addition, the voltage source features an independent voltage waveform setting, separate from the current control. This feature allows users to fine-tune the voltage output while keeping the current constant, or vice versa. This flexibility is critical in applications where specific voltage and current profiles are required to drive or test electronic components, circuits, or systems.

Overall, the Kirchner KSQ 3025's combination of high power, precise control, and versatile settings make it an invaluable tool in a variety of technical and scientific fields.

Typical applications for this voltage source are:

• Electroforming and galvanoplastics
• Precious metal electroplating (gold electroplating and silver electroplating)
• Diamond plating of electroplated tools
• Voltage source for laboratories
• Copper electrolytes and copper electroplating
• Electrolyte testing and pilot plants.

The Kirchner KSQ 3025 voltage source has the following special functions adapted to laboratories and industry:

• AH counter (ampere hour counter)
• Automatic stop after preset coating time with current holding potential
• Automatic holding potential to prevent components from starting up
• RS232 interface to your PLC or via USB adapter to your PC (see our software KSQproduction)
• Programmable voltage profiles
